MiCODUS GPS Tracker Dog

Description

Before order,you need notice:

If you are in Turkey, please left a message to modify the imei number in the order, or contact us after take the order, we can help you to modify the imei number.

If you are in Chile or Colombia,after you receive the product, you should register imei in your country as soon as possible, otherwise the device is not allowed to be used in your country.

How to inquire imei number:you can send SMS command : imei123456

Overview:

This Waterproof GPS Tracker TKSTAR TK935 is a 2G GSM GPS Tracker which is working based on the existing 2G GSM/GPRS network and GPS satellites, it can locate and monitor any targets remotely by SMS, mobile APP and web tracking software without any limit on the tracking distance! It adopts the most advanced technology of GPS and LBS dual positioning. Besides, with built-in powerful magnet, it can be installed very easily，and tightly on car, truck and any target with metal interface；

Besides, this vehicle tracker TK935 is a full featured GPS tracker which is designed for a
wide variety of vehicle tracking applications. It is supported by the optional hard-wired car charger which for gain continuous external power. Its built-in GPS receiver has superior sensitivity and fast time to first fix. Its quad band GPRS/GSM subsystem supports 850/900/1800/1900 MHz allowing the TK935 location to be monitored in real time or periodically tracked by a backend server and mobile devices around the worldwide!

System integration is straight forward as complete documentation is provided for GPRS communication protocol. The GPRS communication protocol supports a wide variety of reports including emergency, geo-fence boundary crossings, low battery, shock alarm and scheduled GPS position.

Main Functions:

1. GPS+LBS Dual Positioning Ways
If the gps signal is good, the device will locate via gps satellite, if not, the device will locate via LBS! Under GPS locating mode, the accuracy is 5-10 meters, under LBS locating mode, the accuracy is 100-1000 meters!

2. Realtime Tracking
You will can realtime track the device on google maps via mobilephone, tablet and computer, and the minumum data upload interval is 10 seconds!

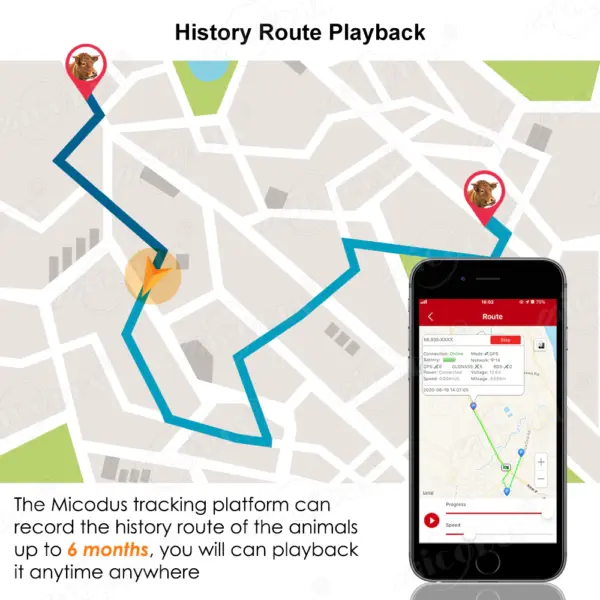

3. History Route Playback
The APP and web server can record the upload data of the device up to 6 months, you will can playback the history route at any time!

4. Long Standby Time
It has built-in 3.7V 3000mAh Li-ion battery, can standby up to 50 days.

5. Powerful Magnetic
With super strong powerful magnet, can be very easily installed.

6. Waterproof IP65
The waterproof level of this device is IP65, it can resist splash water but can’t be put under water!

7. Remotely Voice Monitor
Send “Monitor+Password”to the device first, then the device will turn into monitor mode,
now if you make call to the SIM number in the device, it will pick up your call automatically and you will can monitor the voice around the device!

8. Overspeed Alarm
This alarm works only under continuous positioning mode.When the unit speed is exceed the speed you presetted, it will send message “speed alarm!” to the admin number every 5 minutes.

9. Shock/Vibration Alarm
After you did the shake alarm setting,please keep the tracker being stationary for 5 minutes, then this function will start working. It will send SMS “sensor alarm!” to the admin number when the unit get shocked.

10. Movement Alarm
When the units stays immobile in a place for 10 minutes, the user can set up the movement alarm by this command “move+passord”, then in case the device moved 500m it will send alarm SMS “Move Alarm+Latitude and longitude” to the authorized number.

11. Geo-fence
Set up a geofence for the tracker to restrict its movements within a district. The unit will send alarm information to APP and web server when it goes out of or get in this district.

12. Sleep Mode for Saving Battery
* Sleep by time mode: After did this setting, tracker will only work for 5 minutes after being waked up, and back to sleep mode, GPS will shut off and GSM will works in low consumption mode. SMS, call will can wake up the tracker.
* Sleep by shock sensor mode: After did this setting, if no shock for 5 minutes, the tracker will work under “sleep by shock” mode, GPS will shut off, GSM will works in low consumption. Vibration, SMS, call will can wake up the tracker.

Specification:

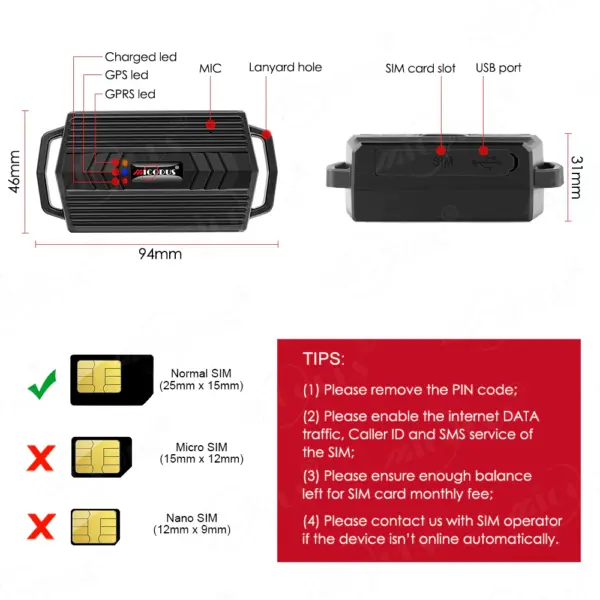

* Dim: 94mm * 46mm * 31mm (3.7″ * 1.8″ * 1.2″)
* Weight: 159g
* Network: 2G GSM/GPRS
* Band: 850/900/1800/1900Mhz
* GPS chipset: u-blox UBX-G7020
* GPS sensitivity: -159dBm
* GPS accuracy: 5m
* Charging input 5V-1A
* Battery: Chargeable 3.7V 3000mAh Li-ion battery
* Standby time: 50days
* Humidity: 5%–95% non-condensing

Important Notice:

* This device just can work with 2G GSM network, and this item will not include Sim Card,please buy it from your local.
* Please make sure the GSM SIM card supports making calls, sending messages, GPRS network
* Please make sure the GSM SIM card has sufficient balance.
* Please make sure the GSM card has opened the call ID display function and turned off the call transfer.
* Please insert the GSM SIM card into the device correctly.
* Please use the normal SIM card for the tracker, not Micro SIM or Nano SIM.

Tracking Software:

* About Web tracking platform:
Free Web tracking software,no charge fee,login page :
Select “Log in by IMEI” on the bottom of screen
IMEI No. : on the back side of cover
Password: 123456

* About Mobile APP Android/IOS Tracking:
Scan the QR Code to install the applications on your cell phone.Register and add account.
Search “TKSTAR GPS” in the Apple App Store/Google Play Store or Scan the QR Code to install the applications on your cell phone.

Package List:

1 * TK935 Main Unit
1 * USB Cable
1 * Micro Sim Adapter
1 * Nano Sim Adapter
1 * User Manual
1 * Hard-wired Car Charger (Optional)
1 * Original Box (Optional)
(No Sim Card and SD Card included)

How to mange this GPS tracker TK935?

1. What should you prepare after got the device?

* Please get a suitable SIM card for this gps tracker, the SIM card must be compatible with 2G GSM network, and must be Normal Size SIM;
* Please enable the “GPRS internet data traffic” and “Caller ID Display” features of the SIM card
* Please make sure the SIM card has enough balance left and removed the PIN code;
* Please get these information from the SIM card provider: apn name,apn username, apn password, MCC number, MNC number.

2. How to log in mobile APP and web server?
* You can scan the QR code on the user guide to download the latest version APP;
* You can log in the APP and web server with the ID number of your device, the default password is 123456.

3. How to enable your device to get it connect with the APP and web server ?
Please set up the device via below SMS commands to enable the device get online on the APP:
* gprs123456
* apn123456 apn name
* apnuser123456 apn user
* apnpasswd123456 apn password

For example, the tesco mobile SIM card in UK, we got APN information below:
APN name:prepay.tesco-mobile.com
APN username:tescowap
APN password:password

Then the SMS commands should be sent as below:
* gprs123456
* apn123456 prepay.tesco-mobile.com
* apnuser123456 tescowap
* apnpasswd123456 password

If without username and password, then please ignor the last two commands! Thanks!

Hope you can enjoy the device, any doubts please just feel free to contact us at any time!

\
